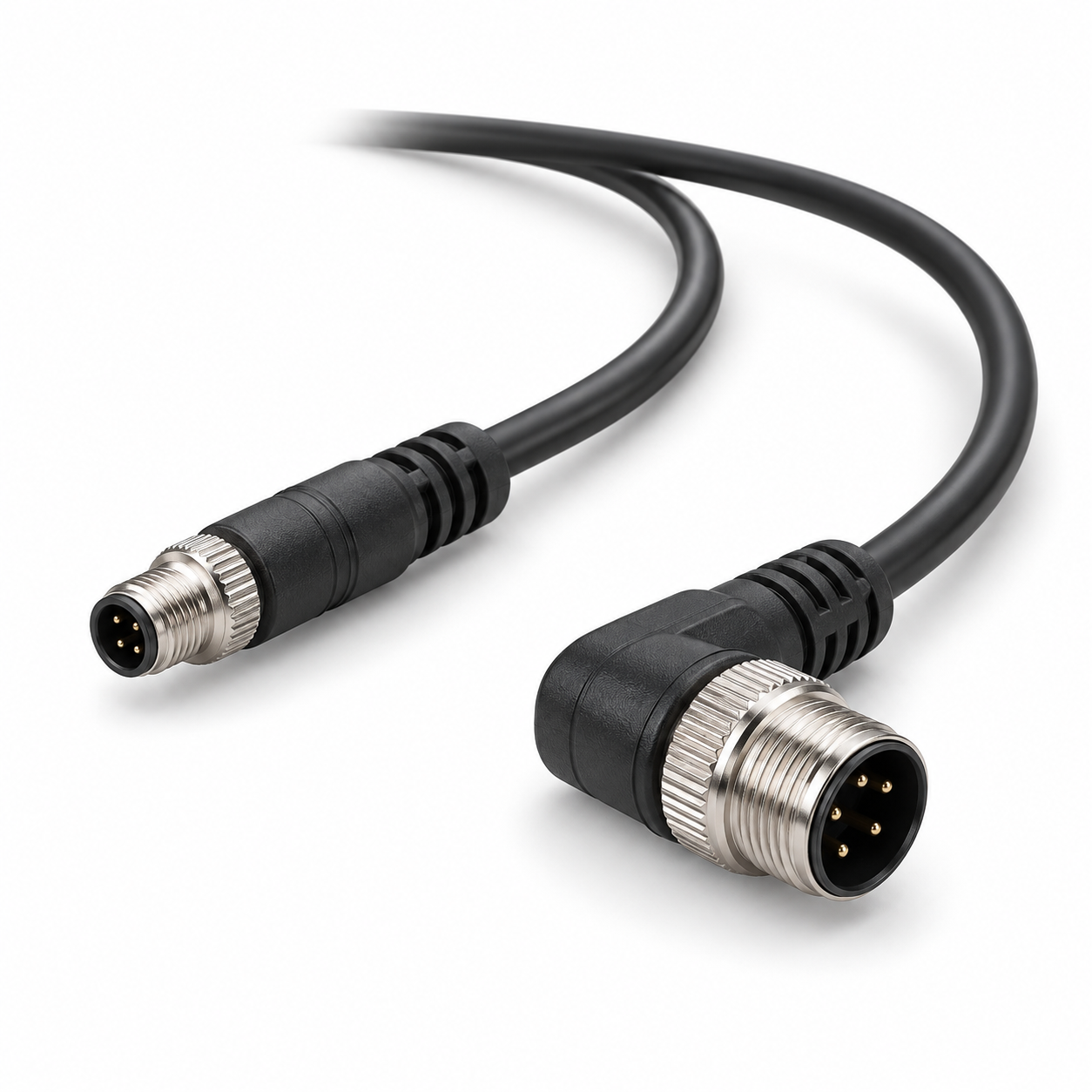

M8 & M12 Overmoulded Cable Assemblies
Applications
M8 and M12 Overmoulded Cable Assemblies are designed for reliable electrical connectivity in industrial automation, sensing, control and instrumentation applications. The overmoulded construction provides a secure connection between the connector and cable while protecting the cable-to-connector interface from mechanical stress and environmental exposure.
These assemblies are suitable for sensors, actuators, control systems and industrial equipment where compact, reliable and ready-to-install connectivity is required.
Construction
The cable assembly combines an industrial-grade M8 or M12 circular connector with a flexible multi-core cable. The connector-to-cable interface is securely overmoulded to provide mechanical reinforcement and protection against bending, pulling and routine industrial handling.
Assemblies are available with different contact configurations to accommodate a wide range of sensors, actuators and industrial equipment. Cable constructions can be supplied with bare or tinned copper conductors and shielded or unshielded configurations.
The cable jacket can be selected according to the application, including flexible PVC, PUR and Spatter Proof constructions. PUR options are suitable for applications requiring enhanced mechanical and environmental resistance, while Spatter Proof constructions are designed for environments exposed to hot particles and industrial spatter.
Key Features
Available with M8 and M12 connectors
Multiple contact/pin configurations
Male and female connector options
Factory-assembled and ready to install
Robust overmoulded connector-to-cable interface
Improved resistance to mechanical stress and repeated bending
PVC, PUR and Spatter Proof cable jacket options
Shielded and unshielded constructions
Bare or tinned copper conductors
Multiple cable lengths and constructions
Compact design for space-constrained installations
Suitable for demanding industrial environments
Custom configurations for OEM and machine-builder requirements
Typical Applications and Uses
M8 and M12 Overmoulded Cable Assemblies are commonly used for:
Industrial sensors
Proximity sensors
Photoelectric sensors
Temperature and pressure sensors
Actuators
PLC systems
Industrial automation
Factory automation
Robotics
CNC machines
Machine tools
Conveyor systems
Packaging machinery
Process control equipment
Control panels
Instrumentation systems
Automotive manufacturing equipment
Welding and automated welding systems
Assembly and production lines
Custom Cable Assemblies
Elcab can manufacture M8 and M12 overmoulded cable assemblies according to customer requirements, including connector size, number of contacts, pin configuration, connector coding, conductor size, cable construction, shielding, cable jacket, cable length, colour and overmould configuration.
The availability of PVC, PUR and Spatter Proof cable options allows the assembly to be matched to the mechanical, environmental and thermal demands of different industrial applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | M8 / M12 Overmoulded Cable Assembly |
| Connector Type | M8 / M12 |
| Connector Configuration | Male / Female |
| Number of Contacts | M8: 3, 4, 5, 6 contacts; M12: 3, 4, 5, 8, 12 contacts |
| Pin Configuration | As per application |
| Connector Coding | As per application |
| Cable Construction | Single-core / Multi-core |
| Conductor | Fine-stranded annealed copper |
| Conductor Finish | Bare / Tinned |
| Cable Insulation | PVC / TPE / Other suitable compound |
| Cable Jacket | PVC / PUR / Spatter Proof options |
| Shielding | Shielded / Unshielded |
| Cable Length | As per customer requirement |
| Overmould Material | Application-specific flexible insulating compound |
| Protection | Enhanced protection at cable-to-connector interface |
| Colour | As per customer requirement |
| Assembly | Factory-assembled and tested |
